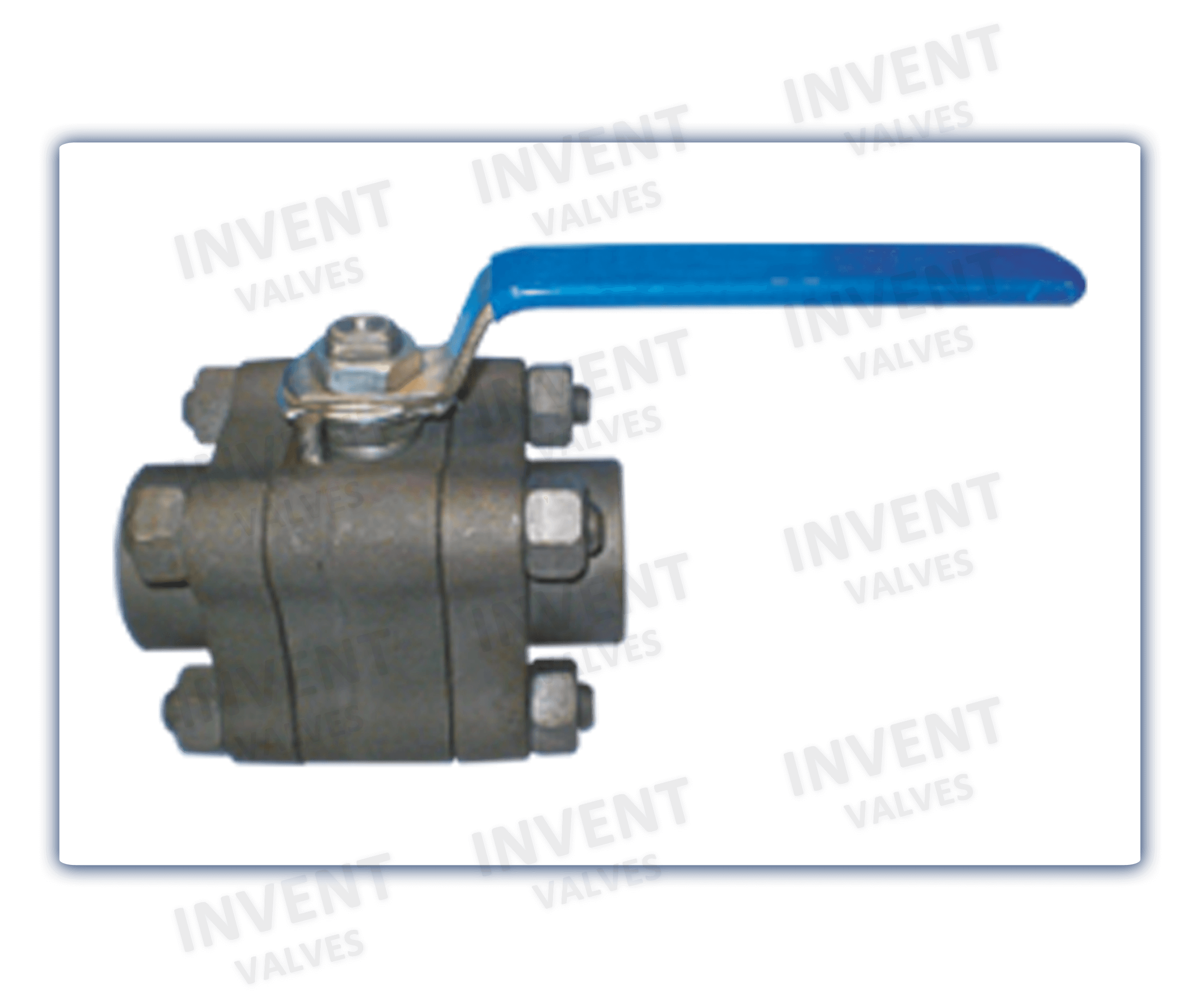

Forged Ball Valve

Forged Ball Valves are designed and manufactured in accordance with latest international standards like API 6D, API 608 and BS 5351 to provide highest safety, efficiency and accuracy.

The “INVENT” Ball Valves are economically priced and designed to last. These Valves provide exceptional performance in even the most stringent applications found in the Oil & Gas industry and other industries. We offer a wide range of elective seat and seal materials.

We are Manufacturing Forged Ball Valves in Single Piece; Two-Piece & Three-Piece cast steel constructions. These Valves are manufactured to the highest possible quality standard. Many of our threaded and socket weld Ball Valves are manufactured according to the ASME B16.34 design standard. These valves provide the exceptional performance in even the most stringent applications found in the Oil & Gas industry and other industries. We manufacture high quality Trunnion mounted Ball Valve which are manufactured under, for more information contact us right now.

Design Features:
  • Wall thickness complies with ASME B16.34 Class 1500#
  • Strain Hardened Stainless Steel Stem
  • Memory Seal Seats Compensate automatically for wear and fluctuations of pressure and temperature
  • Blow Out Proof Stem
  • Solid cup and cone type PTFE Stem Seal- Adjustable
  • Stem bearing in Gland nut reduces Side thrust effect.
  • Live-loaded thrust washer prevents galling and provides a secondary stem seal
  • RPTFE stem washer prevents galling, reduces torque and provides secondary seal
  • Stem grounded against body
  • Handle with safety clip (Optional)
  • Optional oval or high-leverage hand wheels
View PDF

Technical Detail

Manufacturing Std
BS:5351/API:602 / IS:9890
Testing & Inspection Std
API:598
Face to Face
As per ANSI B 16.10
End Connection
Screwed Ends to (BSP, BSP-T & NPT) & Socket Weld
Socket Weld Ends & S/E
ANSI B 16.11 / ANSI B 1.20.1

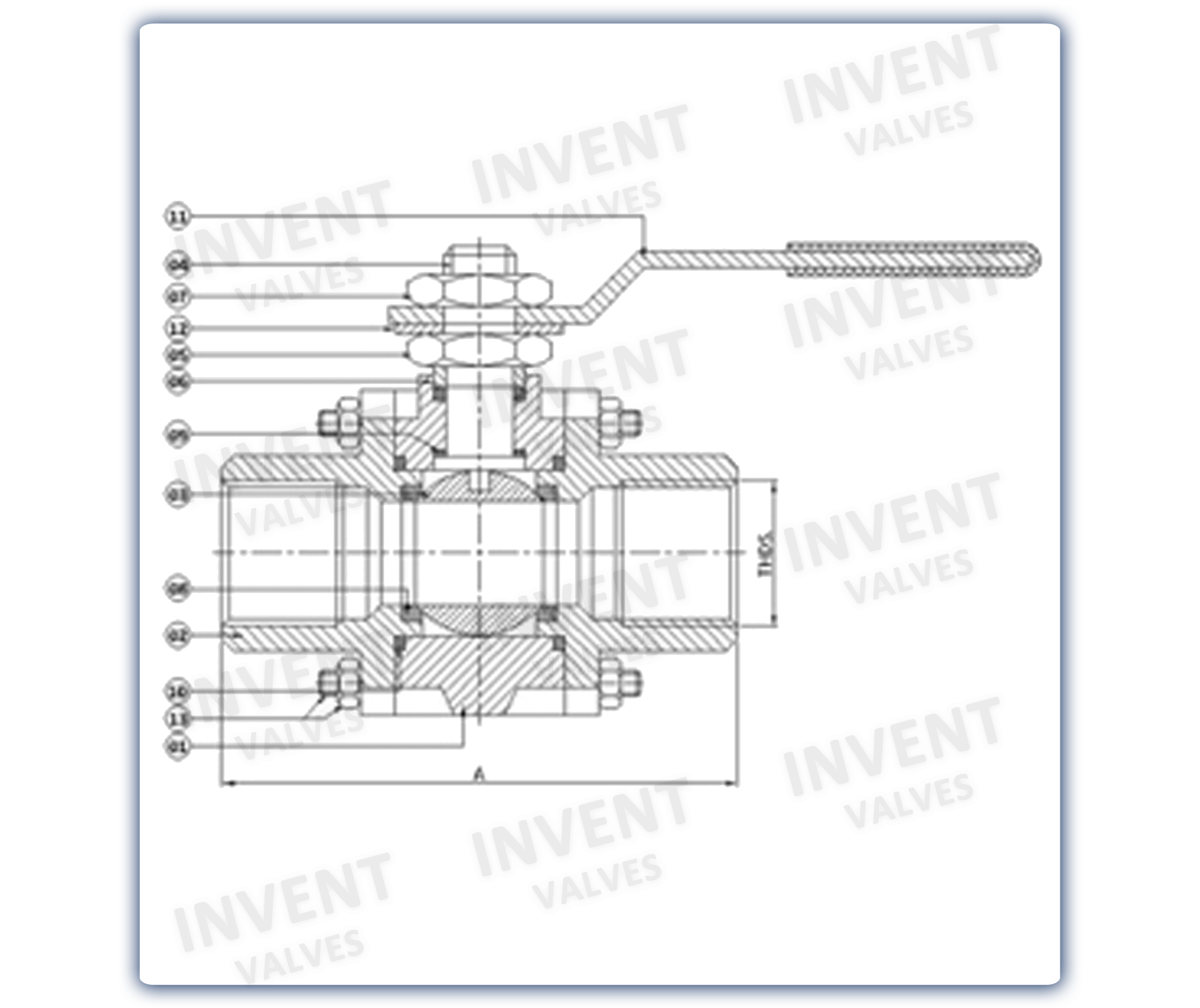

Materials of Construction
PART NO. PART NAME A 105 LF2 LF3 F304 F316 F11 F22
01 Body Bonnet ASTM A105 A350 Gr. LF2 A350 Gr. LF3 A 182 Gr. F304 A 182 Gr. F316 A 182 Gr. F11 A 182 Gr. F22
02 Disc ASTM A105 A350 Gr. LF2 A350 Gr. LF3 A 182 Gr. F304 A 182 Gr. F316 A 182 Gr. F11 A 182 Gr. F22
03 Seat Ring A 182 Gr.F6a A 182 Gr.F6a A 182 Gr.F6a A276-304 A276-316 A276-410 A276-410
04 Stem A276-410 A276-410 A276-410 A276-304 A276-316 A276-410 A276-410
05 Gland Flange A 216 WCB A 216 WCB A 216 WCB A351Gr.CF8 A351Gr.CF8M A 216 WCB A 216 WCB
06 Bolts A193 B7 A320 L7 A320 L7 A193 B8 A193 B8 A193 B16 A193 B16
07 Nuts A193 B7 A320 L7 A320 L7 A193 B8 A193 B8 A193 B16 A193 B16
08 Packing Graphoil Rings
09 Gasket S.S.304 / S.S.316 Spiral wound Gasket with Grafoil Filler
10 Hand Wheel Ductile or Malleable Iron
PART NO. PART NAME A 105 F304 F316 F304L F316L
01 Body ASTM A 105 ASTM A 182 Gr. F304 ASTM A 182 Gr. F316 ASTM A 182 Gr. F304L ASTM A 182 Gr. F316L
02 Side Piece ASTM A 105 ASTM A 182 Gr. F304 ASTM A 182 Gr. F316 ASTM A 182 Gr. F304L ASTM A 182 Gr. F316L
03 Ball AISI 304 / AISI 316 / S.S.304 / S.S.316
04 Stem AISI 304 / AISI 316 / S.S.304 / S.S.316
05 Gland Nut AISI 304 / AISI 316 / S.S.304 / S.S.316
06 Gland Bush AISI 304 / AISI 316 / S.S.304 / S.S.316
07 Lock Nut AISI 304 / AISI 316 / S.S.304 / S.S.316
08 Seat Ring PTFE / RPFE / VITON / EPDM (on Request)
09 Stem Seal PTFE / RPFE / VITON / EPDM (on Request)
10 Body Sealant Ring PTFE / RPFE / VITON / EPDM (on Request)
11 Wrench S.S. / M.S. / C.S.
12 Stop AISI 304 / AISI 316 / S.S.304 / S.S.316
13 Stud & Nut AISI 304 / AISI 316 / S.S.304 / S.S.316
PRIMARY SERVICE RATING & TEST PRESSURE
Class Working Pressure Hyd. Test Pressure
Body Seat Temp
800 800 PSIG 3000 PSIG 2000 PSIG 200°F
Air Test – Seat 80 PSIG ±10 PSIG
